Electric R/C Car Series no.668
1/10 R/C Volkswagen Type 2 (T1) (M-06)
Item No: 58668

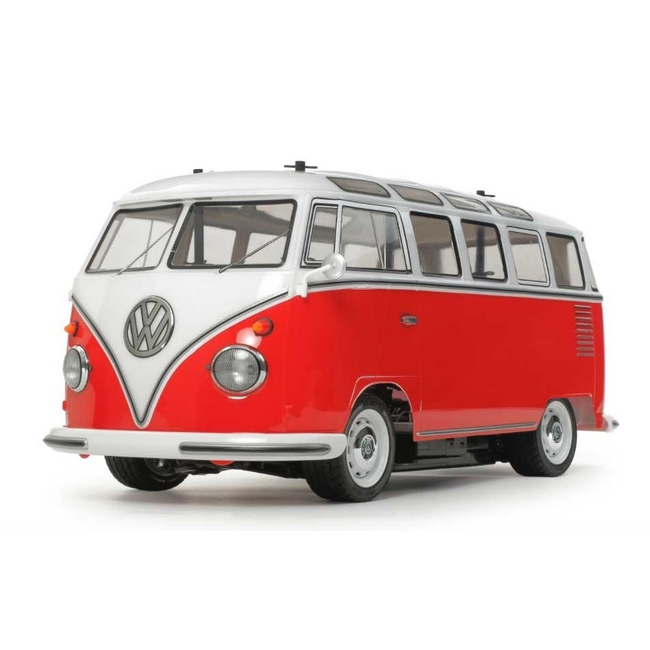

Length: 426mm. Image shows painted and assembled kit.
| A True Legend This R/C model assembly kit recreates the “23-window” type of the much-loved first generation (T1) Volkswagen Type 2, known as the Volkswagen Bus to many of its legions of fans, with an accurate polycarbonate body in detailed 1/10 scale. Combined with classic style wheels and tread patterned tires, it is mounted on the rear-wheel drive M-06 chassis. |
| Great RR Performance from the M-06 The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included. |
 ★Intall separately sold LEDs in the front and rear lights for super realism! Turn signals are separate parts. |
 |
 ★Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks. |
|
 ★The rear of the model also shows off excellent attention to detail, including a separate bumper part. |
 ★Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish. |
|
 ★The rear-mounted motor, rear-wheel drive setup provides the model with excellent traction at the rear. |
|
 ★Three different wheelbase lengths are accessible by switching the position of rear section parts. |
| Specifications ★Length: 426mm, Width: 195mm, Height: 177mm ★Wheelbase: 239mm ★Tread (F/R): 138mm ★Rear-Motor, Rear-Wheel Drive ★3-Bevel Differential Gear ★3-Piece Steering Tie-Rod ★4-Wheel Independent Double Wishbone Suspension ★F/R Friction Dampers ★Gear Ratio = 5.8:1 ★Tire Width/Diameter (F/R): 25mm/59mm ★Type 540 Motor ★Requires an Electronic Speed Controller (sold separately) |
| Separately Required Items ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
