TAMIYA XM-01 PRO CHASSIS
TAMIYA

TAMIYA XM-01 PRO CHASSIS

$480.00 Incl. tax
Out of stock
  • Brick & Mortar Store
  • Quick & Secure Shipping
  • Lots of New Old stock
  • Proudly WA owned

Product description

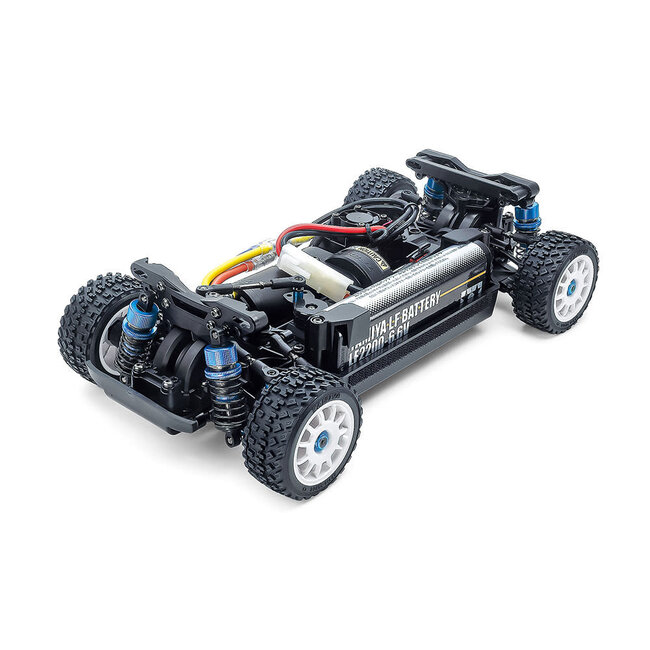

This compact shaft-driven 4WD chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via front and rear propeller shafts. A longitudinal upright battery pack is positioned in the left side, contributing to optimum balance. Changing the rear section allows a choice from three wheelbases. The 4-wheel independent double wishbone suspension has aluminum-cylinder oil dampers. Front caster angle is 5 degrees, and hub carriers and uprights allow two types of ground clearance, while the front bumper skid angle reduces surface contact.

Featured Components
●Front & rear oil-filled gear differentials (two 39T and one 40T included) ●Front & rear universal drive shafts ●Aluminum oil dampers (touring car size) ●Hub carriers & uprights allow ground clearance changes ●Turnbuckle upper arms ●Full ball bearings ●Hi-torque servo saver (black) ●Polycarbonate chassis cover

Specifications
●Length: 308mm (with 225mm wheelbase) ●Width: 165mm ●Choice of 210mm, 225mm and 239mm wheelbases ●Bathtub frame ●Front midship motor, shaft-driven 4WD ●Front/rear oil filled gear differentials ●3-piece steering tie-rod ●4-wheel independent double wishbone suspension ●Aluminum cylinder oil dampers ●Gear ratio = 8.27:1 (with kit 22T pinion; 13 ratios between 10.71 and 6.28:1 are possible with separately sold pinions) ●Contact your local Tamiya Agent regarding the ESC

Separately Required Items
●M-Chassis compatible body ●Type 540 motor ●Tires ●2-channel R/C system ●Battery pack & charger

  • The motor is mounted midships and power goes via propeller shafts to front and rear.
  • Heavier equipment is placed in the middle of the chassis, and the battery has an upright position, giving this rally chassis a compact setup.
  • 39T oil filled gear differentials are standard front and rear, and a 40T gear is also included. Use the 40T to adjust the drive balance.
  • S and M/L wheelbase propeller shafts are included. The same rear input shaft is used for all wheelbases.
  • Change the rear construction to switch between the three wheelbases.
  • The three wheelbases are compatible with existing M-chassis bodies.
  • New hub carriers and rear uprights let you choose ground clearance.
  • The polycarbonate chassis cover also features wheel well covers.

Specifications

Article number
TAMS-58738
EAN Code
4950344587384
SKU
58738
